Motion tracking : Matching motion to a tracking path

Matching motion to a tracking path
Using the Match Motion feature, you can automatically match the motion of overlays and titles with a tracking path to create the effect of one element following another. For example, you can identify a moving person in a video by matching a title name to his tracking path.

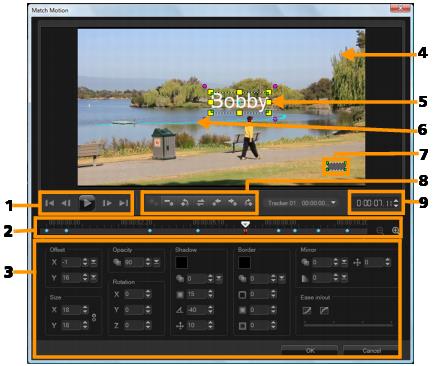

Match Motion dialog box

Part
Description
1 — Playback Control
Buttons that control video playback.
2 — Timeline Control
The Video Timeline along with zoom controls.
3 — Attribute Panel
Defines the Position, Size, Opacity, Rotation, Shadow, Border, Mirror and Ease in/out controls.
4 — Preview Window
Shows the current video being played.
5 — Matched object
Specifies where the matched object is placed, which can be a title or overlay. This is applicable only in Match Motion.
6 — Motion path
The path of the motion as manually defined. This is shown only in the Customize Motion dialog box.
7 — Object distortion window
Controls the orientation of the video clip / overlay object.
8 — Keyframe Control
Adds, removes and controls the position / offset of key frames.
9 — Timecode
Lets you jump directly to a specific part of the video by specifying the exact timecode.

Match Motion / Customize Motion buttons and options
Add keyframe — Adds a keyframe
Remove keyframe — Removes a keyframe
Go to previous keyframe — Jumps to the previously available keyframe
Reverse keyframe — Reverses the current keyframe
Move keyframe to the left — Moves the current key frame one step to the left
Move keyframe to the right — Moves the current key frame one step to the right
Go to next keyframe — Jumps to the next available keyframe
Tracker menu — Lets you select the tracker that the matched object will follow. This is shown only in the Match Motion dialog box.
Reset — Discards all actions. This is shown only in the Customize Motion dialog box.
Save to — Saves the active paths to the path library. This is shown only in the Customize Motion dialog box.
Cancel — Closes the Customize Motion / Match Motion dialog box and discards any changes made on the video.
OK — Closes the Customize Motion / Match Motion dialog box and saves the path tracked as a video clip attribute.


Match Motion / Customize Motion right-click menu

Match Motion / Customize Motion right-click menu
Add key frame
Adds a key frame
Remove key frame
Removes a key frame
Keep Aspect Ratio
Maintains the width to height ratio when you resize the video clip or overlay object.
Reset Distort
Reverts to the original aspect ratio after you distort the clip or object.
Show object distortion window
Displays/hides the object distortion window that controls the orientation of the video clip / overlay object.
Show Grid Lines
Launches the Grid Line Options window that modifies the grid line settings.
Show background video
Displays/hides the other tracks in the Timeline.
Show result in preview window
Enables/disables simultaneous display of edits on the preview window.
Adjust view size (Mouse wheel)
Changes zoom settings to 100%, 50%, or 33%. Alternatively, you can zoom in or out using the mouse wheel.

To launch the Match Motion dialog box
• Right-click an overlay clip on the Timeline and choose Match Motion.
To match motion to a tracking path
1 Insert a video with tracking path in the video track.

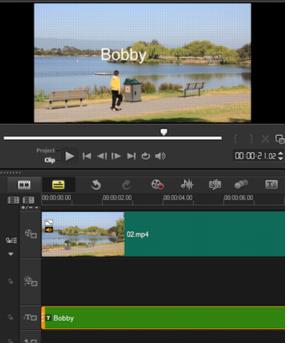

2 Insert a title clip in the overlay track and adjust its properties to match your project.
In this example, the name of the boy in the video is added to the title track.

3 Right-click the title in the title track and select Match Motion. This opens the Match Motion dialog box.
4 If you have more than one tracker, select the tracker that you want to match.
In the sample video, Tracker 01, which represents the tracking path of the boy, is selected.
5 Adjust the properties of your title depending on the requirements of your project.
Each time you set a value, a key frame is added.

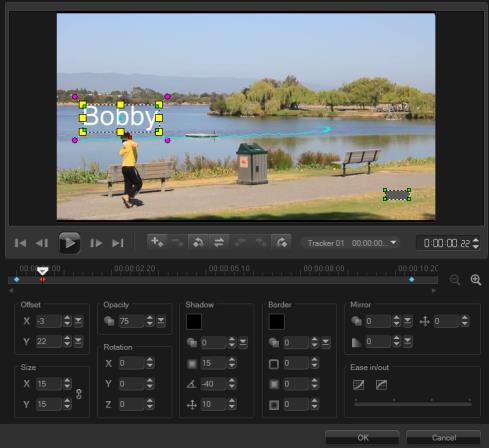

In this example, Offset values are adjusted to set the ideal distance between the boy and the title. The Size and Opacity values are also adjusted to make sure that the title is visible and yet a bit transparent.
Note: If you need to turn and move the clip around the video, you can set the values under Offset and Rotation. You also have the option to add a shadow and border, or mirror your image. Clicking the Ease in/Ease out button / allows the motion to start out slowly or slow down as it comes to an end. Drag the slider to control the timing.
6 Play the video to test your animation. When done, click OK.

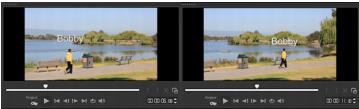

The result of our sample project is shown below.
You can tweak the properties of your overlays and titles by using key frames, dragging the tracker and adjusting values in the Match Motion dialog box.
To unlink overlay clips from tracking paths
• Right-click the overlay clip and select Remove Motion.
